IR 6500 infrared bga rework station

1. Poduct description of IR 6500 infrared bga rework station With 2 heating zones (IR upper heater and bottom heater ), DH-A01R has high-precision temperature controller , which can set 8 heating and cooling , can also store 10 groups of temperature . It's popular among the customers because of its...

Lähetä kysely

Kuvaus

1. Poduct description of keyboard bga rework station

The electronics industry utilizes the DH-6500 IR rework station to solder and desolder components from printed

circuit boards (PCBs). The PCB and the component that needs to be removed or reattached are heated up using

infrared technology under precise temperature and time control. The temperature of the surface and the heating

element, as well as any other parameters for particular jobs, are displayed on the rework station's digital display.

To protect other components and the Board, the heat is concentrated in that location. Mobile phones, laptops, and

gaming consoles are just a few examples of the electronic devices that are frequently repaired and refurbished using the

DH-6500 IR rework station. It is a flexible and effective piece of machinery renowned for handling sensitive electronic

work with accuracy and quickness.



2. Product specification of keyboard bga rework station

DH-A01R Specification
Total Power	2300W
Top heater	450W
Bottom heater	1800W
Power	AC220V±10％ 50/60Hz
Top head movement	Up / down, rotate freely.
Lighting	Taiwan led working light, any angle adjusted.
Storage	Store 10 groups of temperature profile
Positioning	V-groove, PCB support can be adjusted in X,Y direction with external universal fixture
Temperature control	K Sensor, Closed loop
Temp accuracy	±2℃
PCB size	Max 270mmⅹ320mm Min20mmⅹ20mm
BGA chip	55~5555 mm

3. Product Structures of Keyboard bga rework station

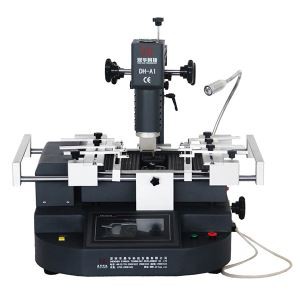

bga soldering machine.jpg

4. Product features of keyboard bga rework station

1). Imported heater, high quality, durable.
2). Taiwan infrared pre-heating ceramic plate, glass guard.
3). Adopt two heating zone, upper heater is infrared heating, lower heater is infrared preheat zone.
4). K type close loop control, the temperature accuracy will be on ±2°C

5. Product details of keyboard bga rework station

Cooling fan

After heating is completed, manually turn on the high-power fan to cool the PCB board to prevent PCB board deformation.

Bottom Temperature zone

The preheated temperature zone uses the Taiwan ceramic heating plate to make the PCB plate evenly heated. Avoid PCB board deformation due to uneven heating. Add tempered glass to the board to prevent the small chips from falling out and burning.
